EMC

• All dimensions are exactly the same for the standard MCT Brattberg components.
• All Insert Blocks are marked with yellow marking (see instructions).

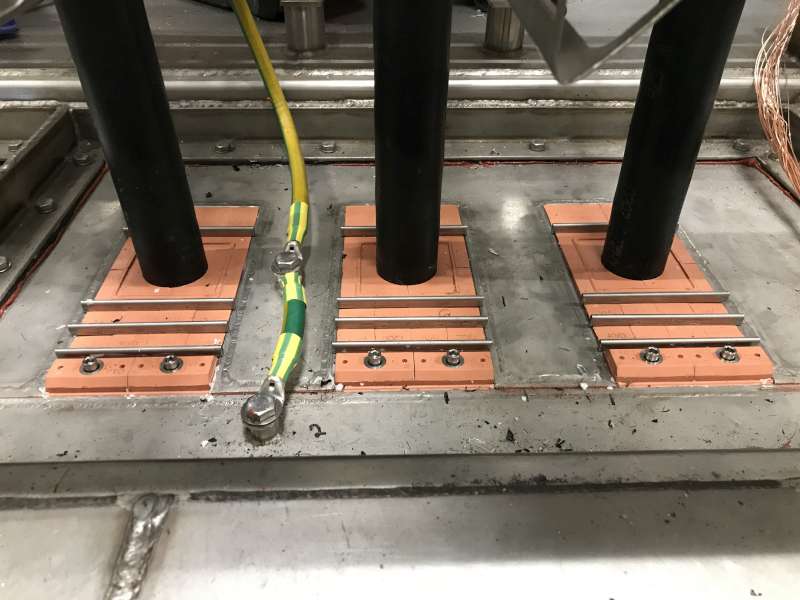

Grounding and Bonding

• For grounding & bonding applications standard presswedge or endpacking is sufficient.
• Series RGS, RGB, RGG, and E-RGP These products are primarily intended for grounding and bonding of communication, instrument, power, braid or wire armored cables and copper pipes, up to max. 1 AWG.
• Plugs and Wraps are only for use in Grounding and Bonding applications, not EMC.
• G&B Datasheet

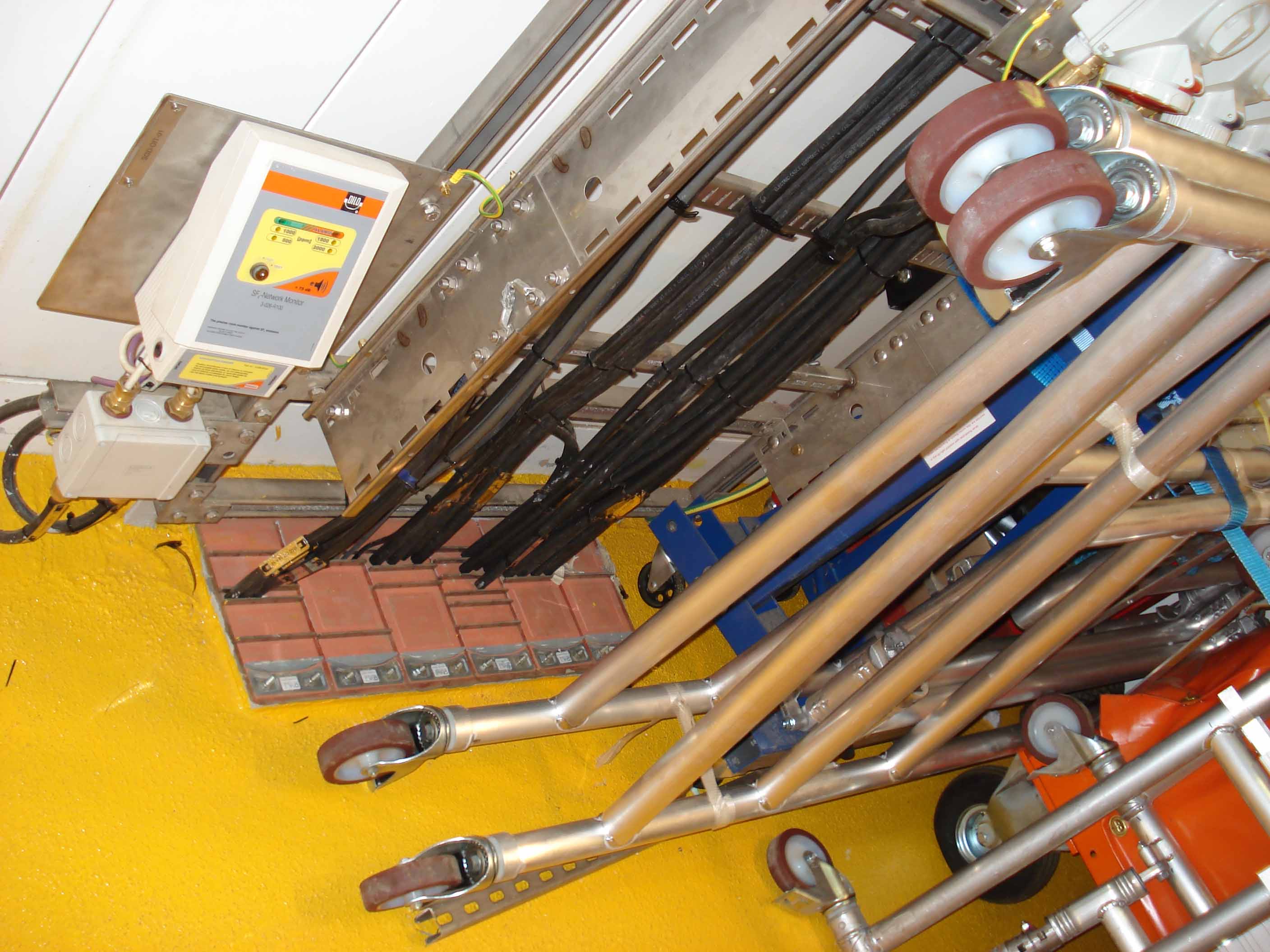

Correct and safe installations

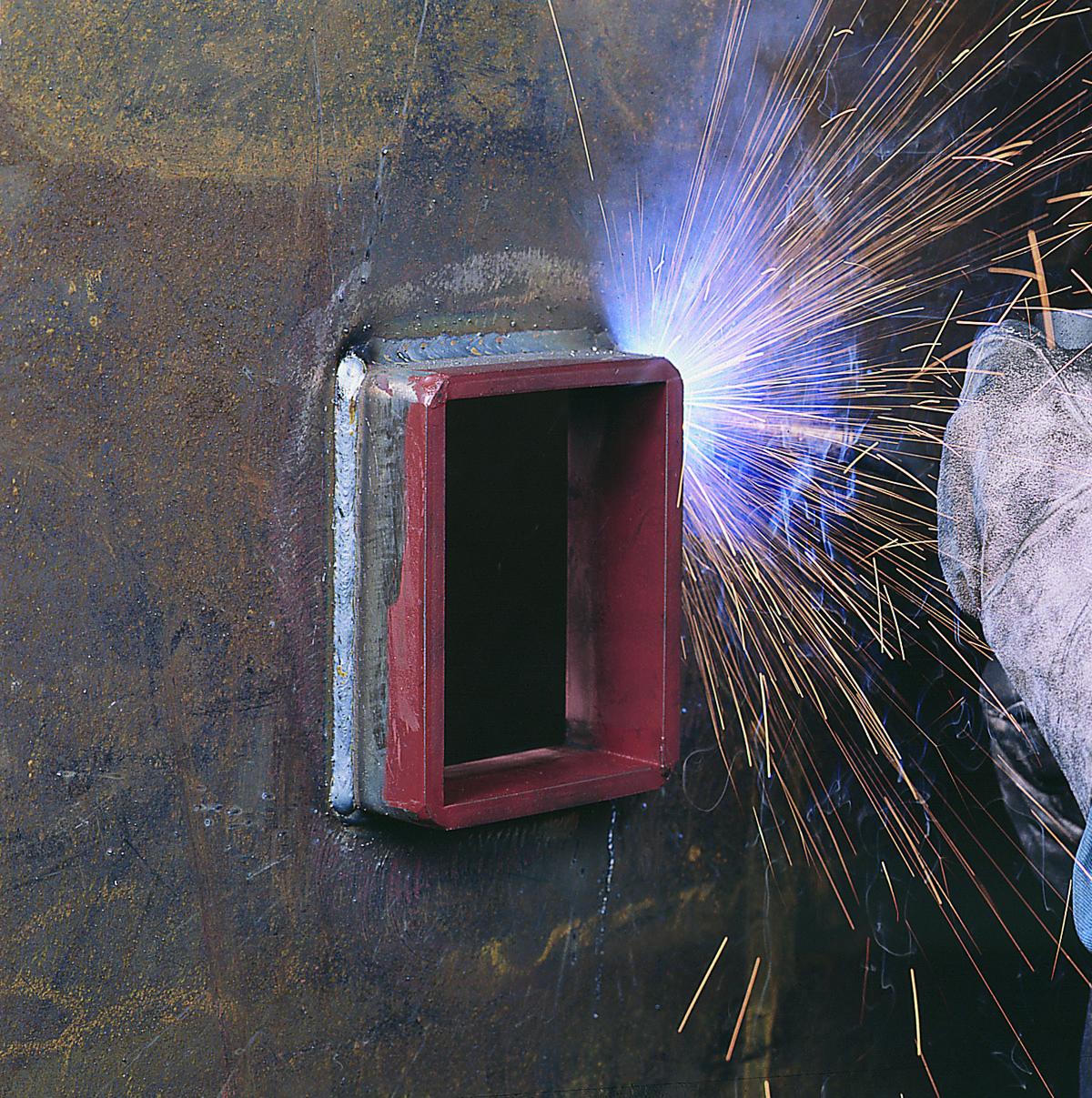

To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.

For more information, please view following instructions, videos or download manuals as PDFs.

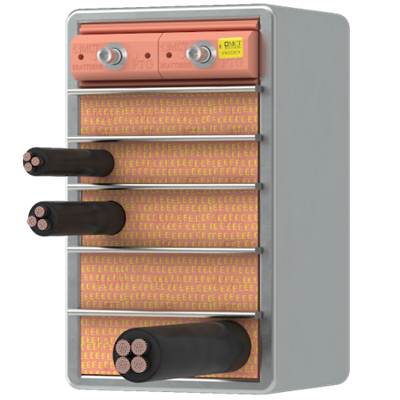

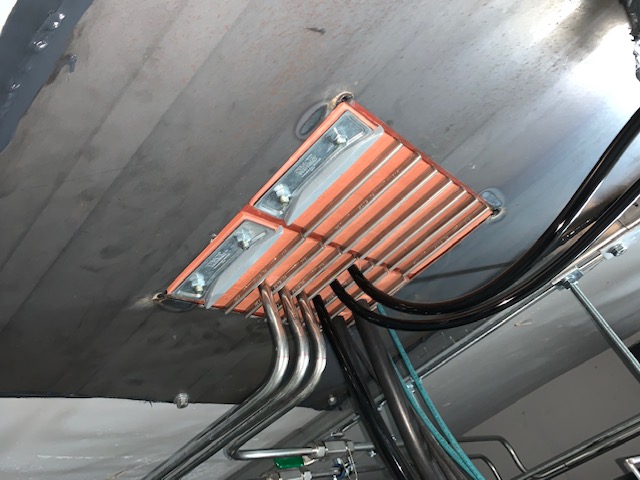

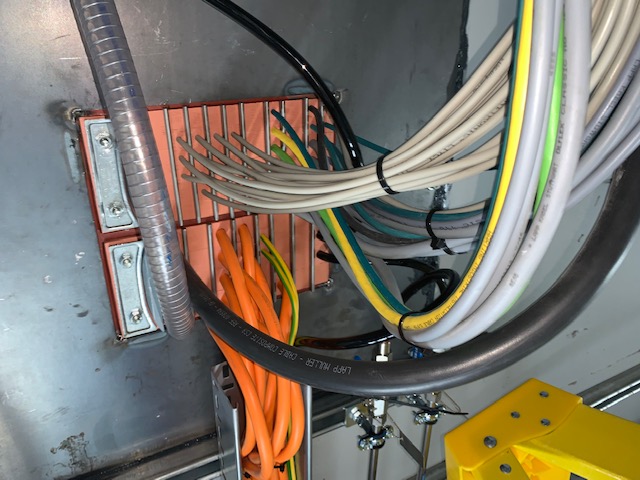

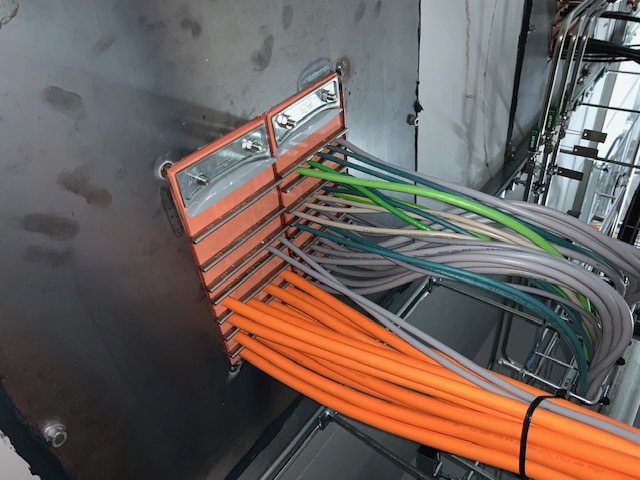

E-RGSK is an extended standard E-RGS transit, with machined grooves for stayplates and compression plates. The material is 10 mm (0.39”) thick on the ends and 12 mm (0.47”) thick on the sides.

E-RGSK transits are recommended if pooling of water on the transit face makes it necessary to install packing blocks at a certain distance from the deck or bulkhead. The frame is 120 mm (4.72”) deep (as opposed to 60 mm (2.36”) on an E-RGS) and of standard internal width 120 mm (4.72”).

General

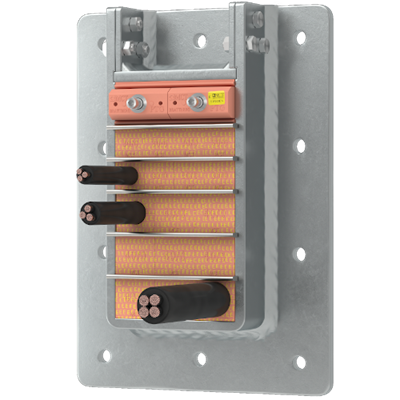

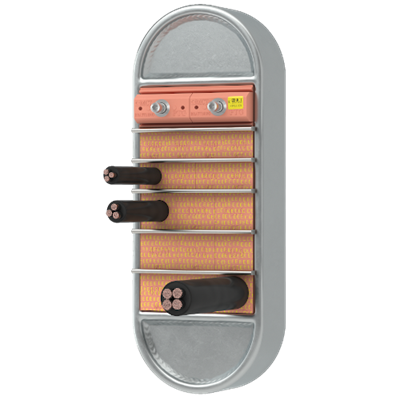

The system consists of a frame, rubber blocks and a compression unit. The frame is casted or bolted to a structure and packed with rubber blocks suited for each cable and pipe dimension. The compression unit is inserted to compress the rubber blocks against cables and pipes to establish a tight seal.

• The EMC systems is also approved for grounding and bonding (G&B) applications

Benefits of MCT Brattberg E-systems

• Protects against electrical and magnetic interference (EMI), “bugging”, electronic sabotage (SEMP) and static electricity (ESD).
• Assists cable management.
• Integral earthing between cables and wall screen.
• Also seals the penetration against the passage of fire, water, gas, sound and environmental hazards.
• Special E-Series for Grounding and Bounding
• System can be dismantled and re-used.
