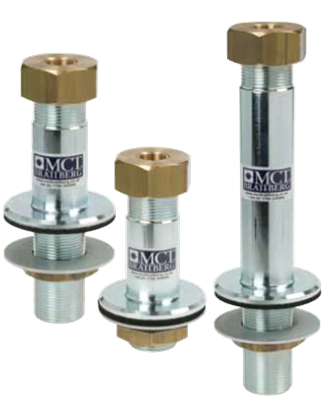

Deck and bulkhead glands

Penetrations specifically developed for the British Royal Navy

At sea

Penetrations specifically developed for the British Royal Navy, but are now sold worldwide to various maritime applications, ships, oil platforms, gas carriers, cruise liners and more.

Lloyds certified Pressure tested to 5 bar
Certified to DEF STAN 02-510/1
NATO stock coded
Supplied complete with flexible seal
Available with EMC
No additional parts or on site machining required
Glands supplied in electro plated mild steel with brass nuts
Ability to fix to Metric threaded Conduit
Lloyds certified to A 60 Approval (metal housing)

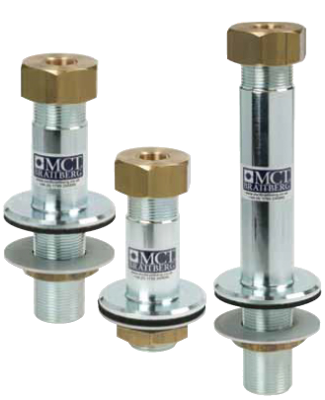

A flexible penetration for single cables. No additional parts or on site machining required. Glands supplied in electro plated mild steel with brass nuts. Ability to fix to Metric threaded Conduit. Available with EMC/EMI protection.

Correct and safe installations

To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.

For more information, please view following instructions, videos or download manuals as PDFs.

Instruction documents

DB Gland installation guide (pdf)

DB Gland Welding (pdf)

For more information visit Instructions and manuals

150 mm (5.90 “) gland assembly with 30 mm ( 1.18”) long thread

Ref	Cable range min		Cable range max		Metric thread	Flange diameter		Nut A/F		Weight
D&B 16-150-30	4 mm	0.16"	16	0.63"	M33x2	70 mm	2.76"	46 mm	1.81"	1.45 kg	3.20 lb
D&B 25-150-30	13 mm	0.51"	25	0.98"	M50x2	80 mm	3.25"	65 mm	2.56"	2.62 kg	5.77 lb
D&B 35-150-30	23 mm	0.91"	35	1.31"	M60x2	100 mm	3.94"	80 mm	3.15"	3.51 kg	7.74 lb
D&B 50-150-30	32 mm	1.26"	50	1.97"	M75x2	120 mm	4.72"	100 mm	3.94"	5.05 kg	11.13 lb
D&B 60-150-30	48 mm	1.89"	60	2.36"	M90x2	150 mm	5.98"	120 mm	4.72"	7.42 kg	16.36 lb

150 mm (5.90 “) gland assembly with 70 mm ( 2.76”) long thread

Ref	Cable range min		Cable range max		Metric thread	Flange diameter		Nut A/F		Weight
D&B 16-150-70	4 mm	0.16"	16	0.63"	M33x2	70 mm	2.76"	46 mm	1.81"	1.63 kg	3.59 lb
D&B 25-150-70	13 mm	0.51"	25	0.98"	M50x2	80 mm	3.25"	65 mm	2.56"	3.03 kg	6.68 lb
D&B 35-150-70	23 mm	0.91"	35	1.31"	M60x2	100 mm	3.94"	80 mm	3.15"	4.14 kg	9.13 lb
D&B 50-150-70	32 mm	1.26"	50	1.97"	M75x2	120 mm	4.72"	100 mm	3.94"	5.71 kg	12.59 lb
D&B 60-150-70	48 mm	1.89"	60	2.36"	M90x2	150 mm	5.98"	120 mm	4.72"	8.08 kg	17.81 lb

75 mm (2.95 “) gland assembly with 30 mm ( 1.18”) long thread

Ref	Cable range min		Cable range max		Metric thread	Flange diameter		Nut A/F		Weight
D&B 16-75-30	4 mm	0.16"	16	0.63"	M33x2	70 mm	2.76"	46 mm	1.81"	1.02 kg	2.25 lb
D&B 25-75-30	13 mm	0.51"	25	0.98"	M50x2	80 mm	3.25"	65 mm	2.56"	1.81 kg	3.99 lb
D&B 35-75-30	23 mm	0.91"	35	1.31"	M60x2	100 mm	3.94"	80 mm	3.15"	2.48 kg	5.47 lb
D&B 50-75-30	32 mm	1.26"	50	1.97"	M75x2	120 mm	4.72"	100 mm	3.94"	3.55 kg	7.83 lb
D&B 60-75-30	48 mm	1.89"	60	2.36"	M90x2	150 mm	5.98"	120 mm	4.72"	6.20 kg	13.67 lb

75 mm (2.95 “) gland assembly with 70 mm ( 1.18”) long thread

Ref	Cable range min		Cable range max		Metric thread	Flange diameter		Nut A/F		Weight
D&B 16-75-70	4 mm	0.16"	16	0.63"	M33x2	70 mm	2.76"	46 mm	1.81"	1.19 kg	2.62 lb
D&B 25-75-70	13 mm	0.51"	25	0.98"	M50x2	80 mm	3.25"	65 mm	2.56"	2.11 kg	4.65 lb
D&B 35-75-70	23 mm	0.91"	35	1.31"	M60x2	100 mm	3.94"	80 mm	3.15"	2.94 kg	6.48 lb
D&B 50-75-70	32 mm	1.26"	50	1.97"	M75x2	120 mm	4.72"	100 mm	3.94"	4.20 kg	9.26 lb
D&B 60-75-70	48 mm	1.89"	60	2.36"	M90x2	150 mm	5.98"	120 mm	4.72"	6.95 kg	15.32 lb
