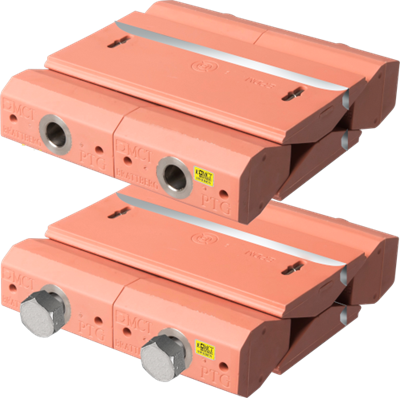

E-PTG Presswedge
The E-PTG-120 compresses the system and completing the seal.
Manufactured from Lycron with stainless steel (316L) hardware or Black Chromate Mild Steel (1144) hardware.
![](/media/lzmbecbg/allen-hex-emc.png?mode=max&width=400&height=400&rnd=132297030926570000)
- Can be placed anywhere in the frame.
- Must always be installed in combination with a stayplate.
- Available in 120 mm, 60 mm or 40 mm width and with 6mm allen or 13mm hexagon key grip.
- The copper sheet forms a contact between the frame and the stayplate.
Data. | |
Trade Name: | MCT Brattberg E-PTG-120/E-PTG-60 |
Material hardware: | Stainless Steel 316L |
O-ring: | Nitril |
Weight E-PTG-120 Kilograms: | 0.83 |
Weight E-PTG-120 Pounds: | 1.81 |
Weight E-PTG-60 Kilograms: | 0.41 |
Weight E-PTG-60 Pounds: | 0.9 |
