Built in protection

IECEx / ATEX

According to EU regulations and IECEx standards all working environments where explosive materials are present the ATEX Directive must be applied. This applies to areas with fuel production and storage, handling of chemicals and the build up of hazardous dust. MCT Brattberg has developed and tested an Ex-approved range of cable and pipe transits to protect adjacent locations in such areas.

Product type

Product area

Mounting

Performance

Number of cables

Certificates

RGS EX multi cable transit

MCT Ex - Marine & Offshore | RGS Ex

Standard Ex

The standard Ex rated transit for welding.

See specs and variations

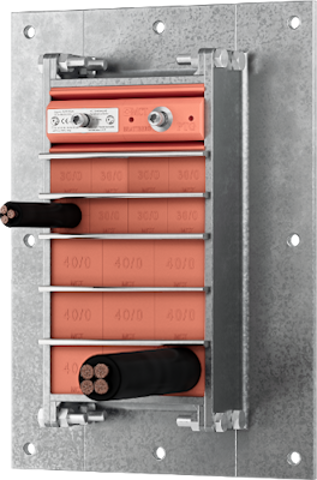

MCT Ex - Landbased | RGG-O Ex

For when cables are already in place

Ex rated transit bolted onto concrete or plasterboard wall or casted into a concrete wall or floor.

See specs and variations

MCT Ex - Round transit | RGP Ex

Standard

The standard round Ex rated cable and pipe transit used in high-risk maritime, offshore and land-based environments

See specs and variations

RGSF Ex multi cable transit

MCT Ex - Marine & Offshore | RGSF Ex

For holes larger than the frame

Ex rated transit welded into a hole which is slightly larger than the frame.

See specs and variations

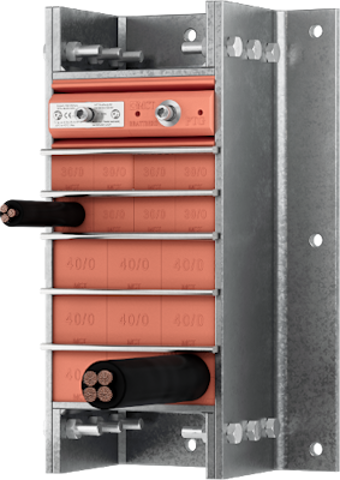

MCT Ex - Landbased | RGG-OK Ex

For when the penetration vary

Ex rated transit bolted were the penetration vary, onto a concrete wall or floor or a plasterboard wall.

See specs and variations

RGSFB Ex multi cable transit

MCT Ex - Marine & Offshore | RGSFB Ex

For bolting

The bolted Ex rated transit can be used in areas where welding is prohibited.

See specs and variations

MCT Ex - Landbased | RGG Ex

For bolting

Ex rated transit bolted onto a concrete wall or floor or a plasterboard wall.

See specs and variations

MCT Ex - Round transit | RGP - S Ex

Standard sleeve

Ex rated cable and pipe transit with a standard sleeve for welding the transit to the structure.

See specs and variations

Custom Cabinet Seals

For cabinets, trains, servers and data centers

Custom multi cable transit seals for Ex Cabinets, EMC protection, servers, data centers and others.

See specs and variations

RGSFBO Ex multi cable transit

MCT Ex - Marine & Offshore | RGSFBO Ex

For when cables are already in place

Ex rated transit for bolting and for installations where cables are already in place.

See specs and variations

MCT Ex - Landbased | RGB Ex

Standard Ex

Ex rated transit casted into a concrete wall or floor in land-based environments.

See specs and variations

MCT Ex - Round transit | RGP - SFR Ex

For holes larger than the frame

Ex rated cable and pipe transit with a flange that allows the transit to be welded into a hole which is slightly larger than the frame.

See specs and variations

RGSC EX multi cable transit

MCT Ex - Marine & Offshore | RGSC Ex

For heavier loading

Ex rated transit welded into decks and bulkheads that are subjected to heavy loading.

See specs and variations

MCT Ex - Round transit | RGP - SFRB Ex

For bolting

The bolted Ex rated cable and pipe transit can be used in areas where welding is prohibited.

See specs and variations

RGSK Ex multi cable transit

MCT Ex - Marine & Offshore | RGSk Ex

For installing at a distance

An extended Ex rated transit were pooling of water can take place.

See specs and variations

MCT Ex - Round transit | RGP - SFRBO Ex

For bolting when cables are already in place

Ex rated cable and pipe transit for bolting and for installations where cables are already in place.

See specs and variations

RGS BTB EX multi cable transit

MCT Ex - Marine & Offshore | RGSbtb Ex

For twice the safety

A double Ex rated transit which is packed from both sides, enabling on site pressure testing and twice the safety.

See specs and variations

RGSR Ex multi cable transit

MCT Ex - Marine & Offshore | RGSr Ex

For higher degrees of stress or heavier loading

Ex rated transit used in decks and bulkheads which are subjected to high degrees of stress.

See specs and variations

Insertblock

Standard Block

For a fast and safe installation

Designed to seal cables and pipes with diameters from 3.5 – 110 mm (0.14-4.33”). Other dimensions can be supplied to order.

See specs and variations

AddBlock

For varying cable dimensions

Available in eleven block sizes and 66 cable dimensions.

See specs and variations

Spare Block

Spare block

For the option of fitting new cables in the future

Unused space in the frame is filled with solid spare blocks.

See specs and variations

U-block

For converting block dimensions

Used to enlarge the external dimensions of blocks to the next modular size.

See specs and variations
