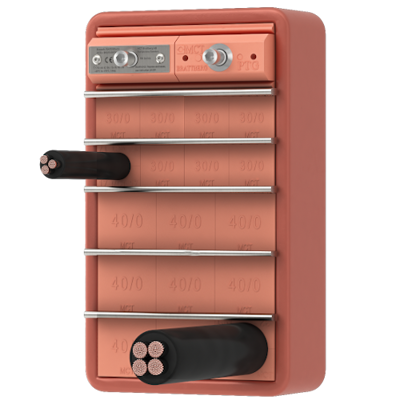

RGS Ex rated cable and pipe transits are used in Ex hazardous maritime and offshore environments to minimize danger by preventing the spread of fire, water, gas chemicals and other hazardous substances.

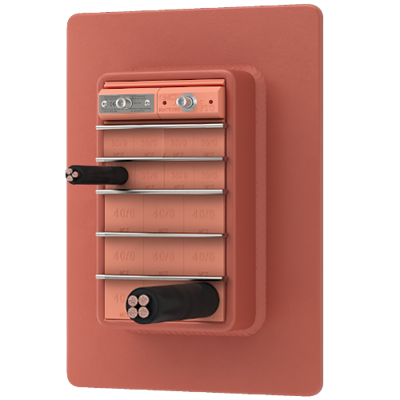

RGSF Ex
RGSF Ex is a standard RGS transit with a flange that allows the frame to be welded into a hole which is slightly larger than the frame. For installations where cables are already in place, specify RGSFO Ex which has a removable end.
The marking of the equipment and protective system
Group II Category 2GD Ex eb IIC Gb Ex tb IIIC Db Tamb (-60°C to+70°C)
Ex
- Available only as component.
Component:
Component is not intended to be used alone and requires additional consideration when incorporated into other equipment or systems for use in explosive atmospheres (refer to IEC 60079-0)
- Ex system combined with EMC has yellow marking on the front face (see EMC instructions)
Correct and safe installations
To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.
For more information, please view following instructions, videos or download manuals as PDFs.
Components Ex
Ex and ATEX requirements are very strict, some Ex Insert blocks may not be approved with certain systems.
- Insert Blocks combined with EMC has yellow marking on the front face (see EMC instructions)
Instruction documents
For more information visit Instructions and manuals
Width of the flange: 60 mm (2.36”) wide and 10 mm (0.39”) thick.
RGSF Ex can also be installed in multiple frames.
Standard frames come in eight sizes: 1, 2, 3, 4, 5, 6, 7, and 8.
The internal width can be 60.5 ± 1 (Size 1,3,5,7) or 120.5 ± 1 (2,4,6,8).
Note that there can be limitations in type-approvals & certificates, making certain sizes inapplicable.
For size and weight please see tables in the MCT Online Catalogue:
RGSF 2
RGSF 8
General
The system consists of a frame, rubber blocks and a compression unit. The frame is welded or bolted to a Ex hazardous marine structure and packed with rubber blocks suited for each cable and pipe dimension. The compression unit is inserted to compress the rubber blocks against cables and pipes to establish a tight seal.
The marking of the equipment and protective system:
Group II Category 2GD Ex eb IIC Gb Ex tb IIIC Db Tamb (-60°C to+70°C)
Benefits of MCT Brattberg Ex systems
- Ex rated transit for hazardous environments
- Assists cable management
- Seals the penetration against the passage of fire, water, gas, sound and environmental hazards
- Can be combined with special EMC modules and for Grounding and Bounding
- Unlike other brands our system can be dismantled and re-used
- Cable dimension marked on block
- No adaptation of standard blocks needed
Lycron material for high performance
The system consists of components made of lycron. These are halogen free and flame retardant.
See morePerformance
For more information visit Certificates
System components
MCT Ex - Marine & Offshore | RGSF Ex
Ex rated transit welded into a hole which is slightly larger than the frame.
See specs and variations for MCT Ex - Marine & Offshore | RGSF Ex

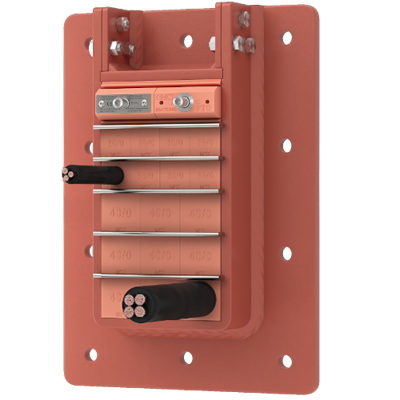

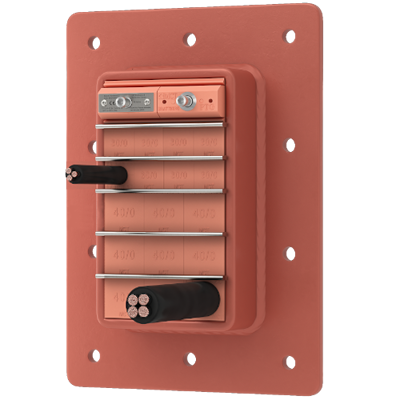

MCT Ex - Marine & Offshore | RGSFBO Ex
Ex rated transit for bolting and for installations where cables are already in place.
See specs and variations for MCT Ex - Marine & Offshore | RGSFBO Ex

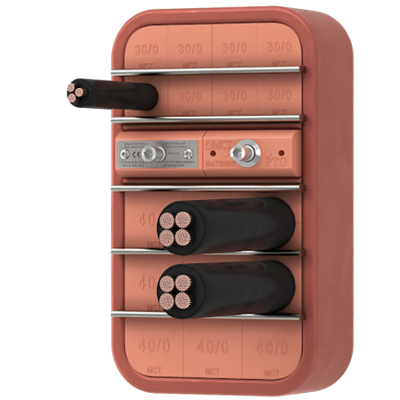

MCT Ex - Marine & Offshore | RGSC Ex
Ex rated transit welded into decks and bulkheads that are subjected to heavy loading.
See specs and variations for MCT Ex - Marine & Offshore | RGSC Ex

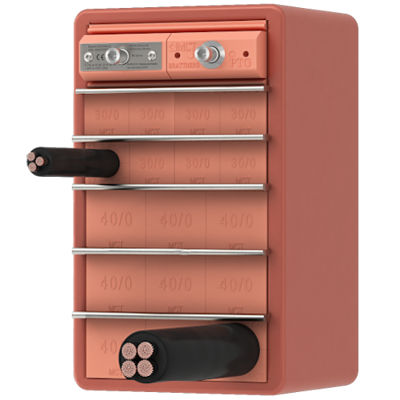

MCT Ex - Marine & Offshore | RGSk Ex
An extended Ex rated transit were pooling of water can take place.
See specs and variations for MCT Ex - Marine & Offshore | RGSk Ex

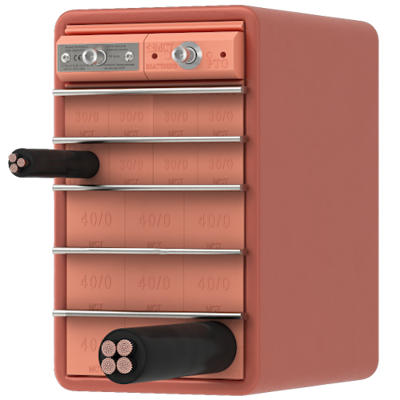

MCT Ex - Marine & Offshore | RGSbtb Ex
A double Ex rated transit which is packed from both sides, enabling on site pressure testing and twice the safety.
See specs and variations for MCT Ex - Marine & Offshore | RGSbtb Ex
Stayplate
To be placed between each row of blocks.
See specs and variations for Stayplate
STG Endpacking
Installed between compression plate and the top of the frame.
See specs and variations for STG Endpacking
PTG Presswedge
Can be installed anywhere in the frame.
See specs and variations for PTG Presswedge
Standard Block
Designed to seal cables and pipes with diameters from 3.5 – 110 mm (0.14-4.33”). Other dimensions can be supplied to order.
See specs and variations for Standard Block
AddBlock
Available in eleven block sizes and 66 cable dimensions.
See specs and variations for AddBlock
Spare block
Unused space in the frame is filled with solid spare blocks.
See specs and variations for Spare block
U-block
Used to enlarge the external dimensions of blocks to the next modular size.
See specs and variations for U-block
Blanking Plate
Ingress protection IP65/66
See specs and variations for Blanking Plate
Lubricant
Shall be applied on all Lycron parts sealing surfaces when such demands exist
See specs and variations for Lubricant
Packing Tool Large/Small
Packing Tool L/S
See specs and variations for Packing Tool Large/Small
STG Endpacking Puller
For re-entry into system
See specs and variations for STG Endpacking Puller
Quick Release Spanner
For compression plate installation
See specs and variations for Quick Release Spanner
Cable Separator
To aid installation of insert blocks by keeping away the interference of cables
See specs and variations for Cable Separator
Spacer Tool
Spacer Tool
See specs and variations for Spacer Tool
Tweezers
Assist insertion of last block in each row
See specs and variations for Tweezers
