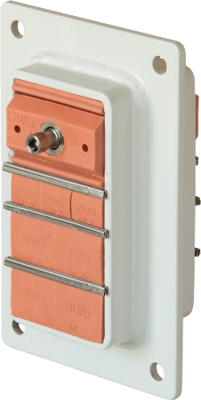

Custom Cabinet Seals
Custom multi cable transit seals for Ex Cabinets, EMC protection, servers, data centers and others.
-
Ex / ATEX
-
EMC
-
Custom Made
Ex applications
The material has to be stainless steel and mandatory gasket is supplied.
The marking of the equipment and protective system:
Group II Category 2GD Ex eb IIC Gb Ex tb IIIC Db Tamb (-60°C to+70°C)
Instruction documents
For more information visit Instructions and manuals
Intended use: Seal around cables penetrating cabinets.
The standard transit is made of mild steel, stainless steel. The mild steel transits are supplied with two types of surface finish, primer or galvanized. The internal width can be 60.5 ± 0.5 or 120.5 ± 0.5. From size 1 on to any applicable size.
Size 1 (RGG-1) can be made with FL21 standard flange combined ATEX and EMC.
