PTG Presswedge

For completing the seal

At sea On land

The PTG compresses the system and completing the seal. Manufactured from Lycron with stainless steel (316L) or Black Chromate Mild Steel (1144) hardware.

Also available as:

E-PTG Presswedge

Also available as:

E-PTG Presswedge

Can be placed anywhere in the frame.
Must always be installed in combination with a stayplate.

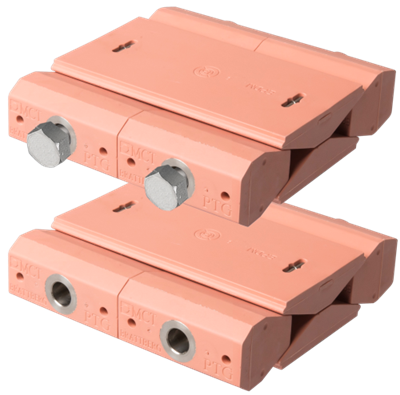

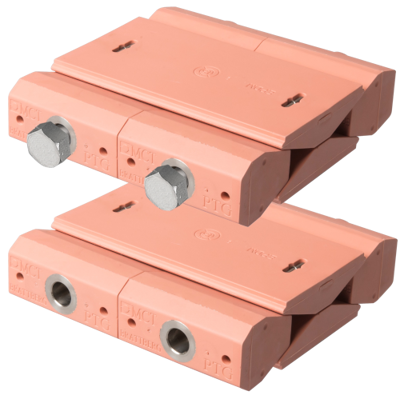

Available in 120 mm, 60 mm or 40 mm width and with 6mm allen or 13mm hexagon key grip.

Data.
Trade Name:	MCT Brattberg PTG-120/PTG-60/PTG-40
Material hardware:	Stainless Steel 316L or Mild Steel 1144 8.8 Fe/Zn 8Bk/F
O-ring:	Nitril
Weight PTG-120 Kilograms:	0.83
Weight PTG-120 Pounds:	1.81
Weight PTG-60 Kilograms:	0.41
Weight PTG-60 Pounds:	0.9

Lycron material for high performance

The system consists of components made of lycron. These are halogen free and flame retardant.
