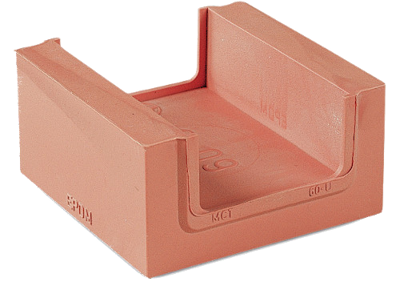

U-block

For converting block dimensions
At sea On land

The U-Block is used to convert the external dimensions of Insert Blocks, AddBlocks and Spare Blocks to the next modular size. For example a 30/15 Insert Block can be enlarged by placing it into a U40, giving the new size of 40/15.

Correct and safe installations

To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.

For more information, please view following instructions, videos or download manuals as PDFs.

RGS Frame Horizontal
How to install a MCT Brattberg RGS/RGB frame, vertical
Instruction documents

For more information visit Instructions and manuals

U-block

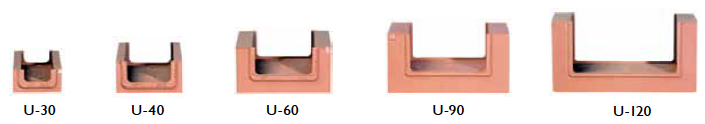

U-block sizes

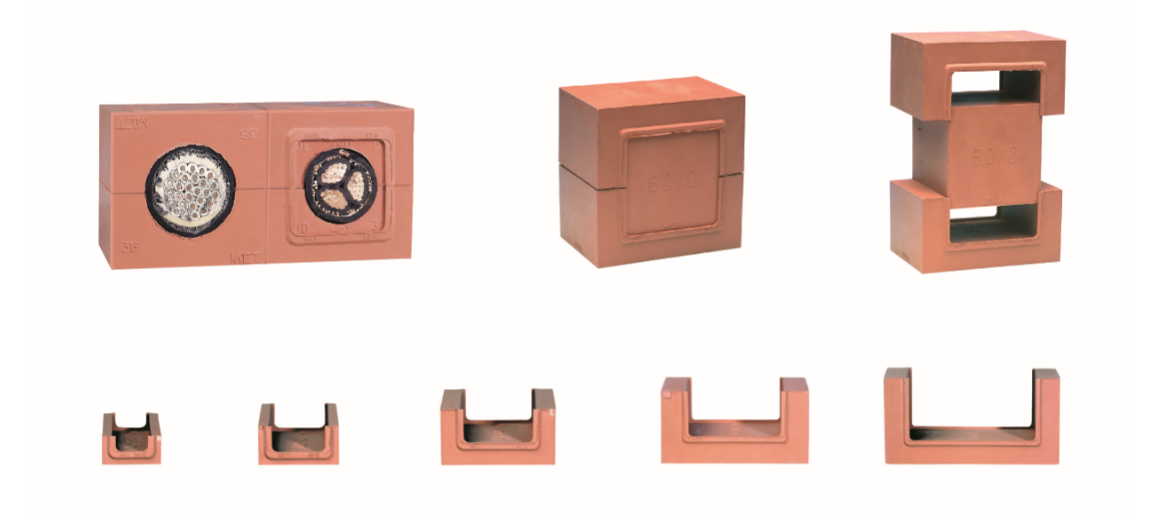

U-block sizes and variations

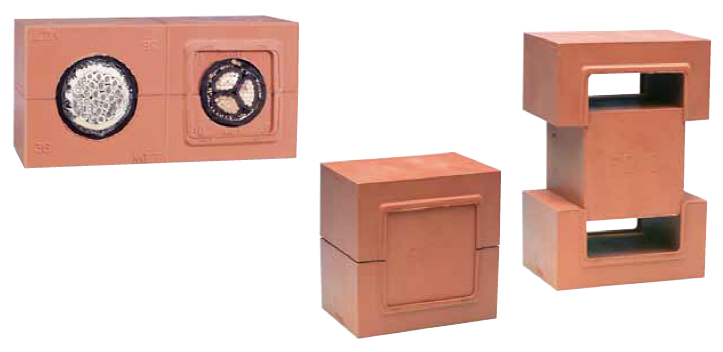

U-block Example

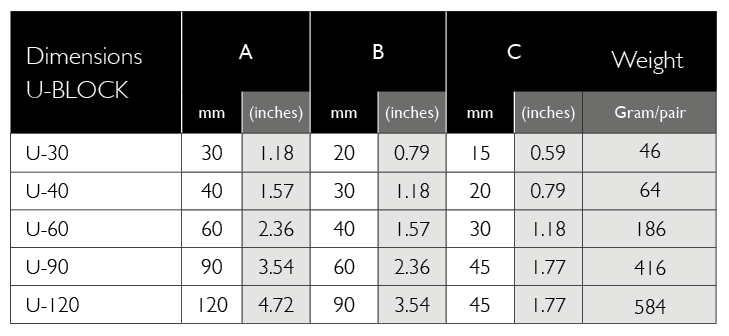

U-Block size and weight

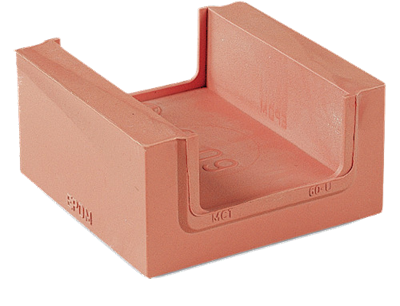

Ublock Dimensions

Measurements in millimetres.

See image for dimension reference.

Lycron material for high performance

The system consists of components made of lycron. These are halogen free and flame retardant.
