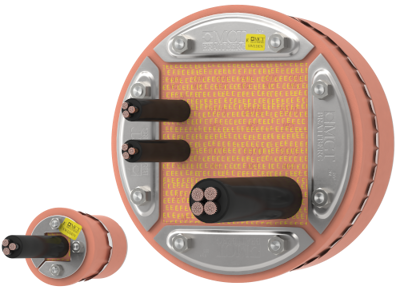

EMC and G&B multi cable & pipe transits for maritime, offshore and land-based applications. The EMC transits & components provide the same sealing as the standard MCT Brattberg system but with added, built-in protection against electromagnetic pulse (due to lightning or nuclear blast) and interference (EMI), electronic sabotage (synthetic EMP) and static electricity.
E-MCT - Round transit
EMC and G&B multi cable & pipe transits for maritime, offshore and land-based applications. The EMC transits & components provide the same sealing as the standard MCT Brattberg system but with added, built-in protection against electromagnetic pulse (due to lightning or nuclear blast) and interference (EMI), electronic sabotage (synthetic EMP) and static electricity.
EMC
- All dimensions are exactly the same for the standard MCT Brattberg components.
- All Insert Blocks are marked with yellow marking (see instructions).
Grounding and Bonding
- For grounding & bonding applications standard presswedge or endpacking is sufficient.
- Series E-RGS, E-RGB, E-RGG, and E-RGP These products are primarily intended for grounding and bonding of communication, instrument, power, braid or wire armored cables and copper pipes.
- Plugs and Wraps are only for use in Grounding and Bonding applications, not EMC
- G&B Datasheet
Correct and safe installations
To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.
For more information, please view following instructions, videos or download manuals as PDFs.
PRESSURE-TIGHT INSTALLATION
All contact surfaces between the pipe and the RGP plug must be cleaned carefully prior to installation. Do not use any lubricant on these surfaces. All blocks must be lubricated carefully with MCT Brattberg lubricant. The penetration must not be subjected to pressure for at least 48 hours after installation. This is to allow the pressure to equalise throughout the penetration. It will take more time for the pressure to equalise at temperatures below 20°C.
Note: If the installation is subjected to pressure, all components must be replaced after removal and refitting.
Instruction documents
For more information visit Instructions and manuals
The RGP is available in 12 standard diameters 50, 70, 100, 125, 150, 200, 300 mm, 3", 4", 5", 6", 8" and is packed with MCT insert blocks. The hardware is available in galvanized or stainless steel (316L).
See specific dimensions, sizes and sleeves
RGP 50 (2")
RGP 70 (2.75") or RGP 3" (76.2mm)
RGP 300 (11.8")
RGP 100 (3.93") or RGP 4" (101.6mm)
RGP 125 (4.92") or RGP 5" (127mm)
RGP 200 (7.87") or RGP 8" (203.2mm)
RGP 150 (5.90") or RGP 6" (152.4mm)
General

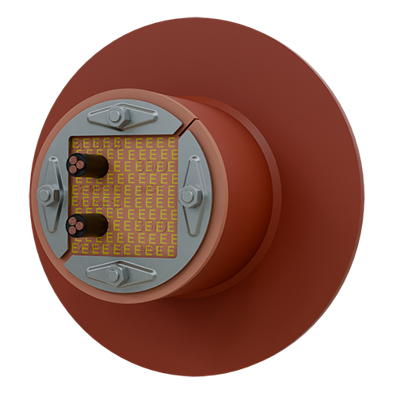

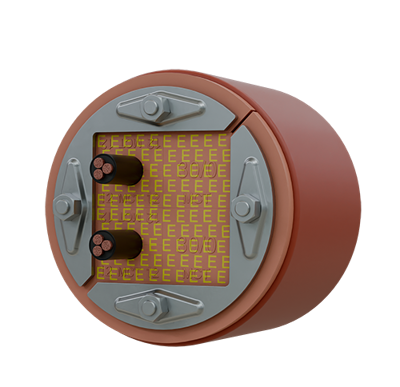

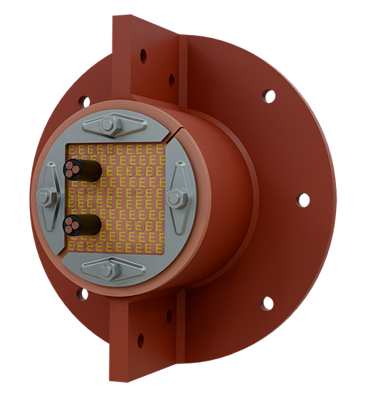

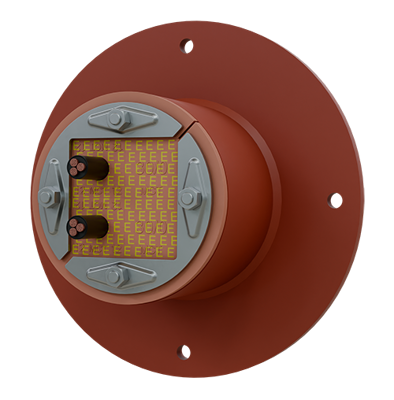

The system consists of a round rubber frame and rubber blocks. The E-RGP is assembled in sleeves, pipes, drilled or cast holes and packed with rubber blocks suited for each cable and pipe dimension. The compression bolts are tightened to compress the rubber blocks against cables and pipes to establish a tight seal.
- The EMC systems is also approved for grounding and bonding (G&B) applications.
Benefits of MCT Brattberg E-systems
- Protects against electrical and magnetic interference (EMI), “bugging”, electronic sabotage (SEMP) and static electricity (ESD).
- Assists cable management.
- Integral earthing between cables and wall screen.
- Also seals the penetration against the passage of fire, water, gas, sound and environmental hazards.
- Special E-Series for Grounding and Bounding
- System can be dismantled and re-used.
Performance
For more information visit Certificates
System components
E-Standard Block
The E-Block has an integral copper sheet as discharging and shielding protection for protection against EMI, EMP and ESD
See specs and variations for E-Standard Block
E-Addblock
Available in eleven block sizes and 66 cable dimensions with protection against EMI, EMP and ESD
See specs and variations for E-Addblock
E-Spareblock
Unused space in the frame is filled with solid E-Spareblocks for protection against EMI, EMP and ESD
See specs and variations for E-Spareblock
Lubricant
Shall be applied on all Lycron parts sealing surfaces when such demands exist
See specs and variations for Lubricant
CCM - Casting Module
Concrete Casting Module - Knock-Out Plate
See specs and variations for CCM - Casting Module
Block Selector
For cable and pipe measurement. Insert blocks, add blocks and HandiBlocks.
See specs and variations for Block Selector
Tweezers
Assist insertion of last block in each row
See specs and variations for Tweezers
EMC Marking Template
EMC Marking Template
See specs and variations for EMC Marking Template
