Correct and safe installations

To achieve the highest standard of safety, a cable transit must be installed correctly. it is essential that installers known when to use the most appropriate installation method.

For more information, please view following instructions, videos or download manuals as PDFs.

Data

Modules:
EPDM

Aluminium:
Grade ADC-12

Gasket between frame and cabinet:
EPDM

Gasket between frame halves:
EPDM

Plastic gasket washer:
LDPE

Mounting hardware:
SS-304

EPDM is Halogen Free and Low smoke.

• Multiple cables can be routed through the frame
  More cables can be installed into the box or equipment than with glands.
• Multiple frame variations with limited parts
  Same frame for new or retrofit installations. Few parts required to adjust to larger openings.
• FL 21 (RFCS-12)
  Uniform standard opening/Knock-off holes in housing cabinets. Fast production line assembly and reduced planning.
• Open Frame and openable modules
  No surprises in field, cables with large connectors don’t need to be terminated or prepped for routing compare to conventional plug in connectors & cable glands.
• Adjustable Block
  Limited inventory needed in stock, Limited parts needed at installation location.
• Modules marked with cable designation
  Faster installation, proactively ensures correct installation. No Field decision making.
• Reusable insert layers
  Increased efficiency and safety of product, Much easier to install the seal correctly, possible to correct errors.
• Plugged block
  Frame is ready for new cables, without new parts.
• Back retention stopping flange
  Easier installation in horizontal application.
• Mini PTG compression Unit
  Can be installed inside or outside the box for increased safety, can be installed on top or bottom of frame for easier Installation.
• Certification
  Easy to identify conformance.
• Inspectable Parts
  Increased safety.

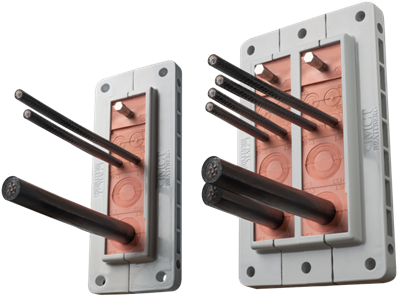

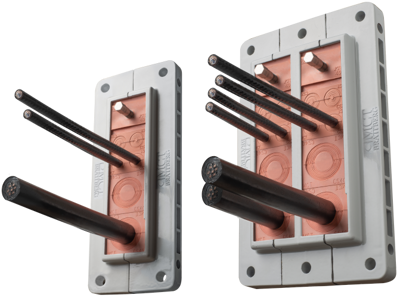

MCT Brattberg RFCS Kit contains:

• Openable frame.
• Sealing modules marked with cable diameter.
• Compression wedge.
• Gasket for sealing frame to cabinet.
• Mounting Hardware.
• Installation Manual.
• Lubricant.

Sealing modules

Complete in every kit
