EMC

• All dimensions are exactly the same for the standard MCT Brattberg components.
• All Insert Blocks are marked with yellow marking (see instructions).

Grounding and Bonding

• For grounding & bonding applications standard presswedge or endpacking is sufficient.
• Series RGS, RGB, RGG, and E-RGP These products are primarily intended for grounding and bonding of communication, instrument, power, braid or wire armored cables and copper pipes, up to max. 1 AWG.
• Plugs and Wraps are only for use in Grounding and Bonding applications, not EMC.
• G&B Datasheet

Correct and safe installations

To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.

For more information, please view following instructions, videos or download manuals as PDFs.

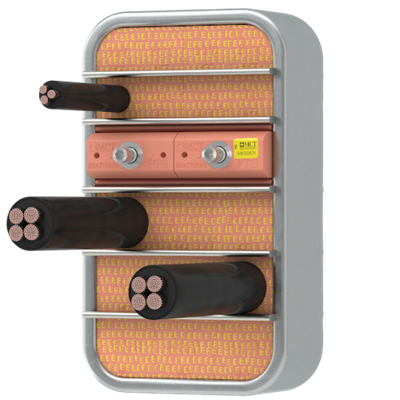

RGSC can also be supplied as multiple transits. Available in mild steel, stainless steel and aluminium. Special corner blocks and STG-endpackings with rounded corners are available.

Cornerblocks (R20)

Standard frames come in four sizes: 2, 4, 6 and 8. They are all the same width. Height differences are shown below. The material is 10 mm (0.39”) thick.

Available as:
C20/0 R20, C30/0 R20, C40/20x20 R40, C 60/40x40, C60/0 R40

General

The system consists of a frame, rubber blocks and a compression unit. The frame is casted or bolted to a structure and packed with rubber blocks suited for each cable and pipe dimension. The compression unit is inserted to compress the rubber blocks against cables and pipes to establish a tight seal.

• The EMC systems is also approved for grounding and bonding (G&B) applications

Benefits of MCT Brattberg E-systems

• Protects against electrical and magnetic interference (EMI), “bugging”, electronic sabotage (SEMP) and static electricity (ESD).
• Assists cable management.
• Integral earthing between cables and wall screen.
• Also seals the penetration against the passage of fire, water, gas, sound and environmental hazards.
• Special E-Series for Grounding and Bounding
• System can be dismantled and re-used.
