Correct and safe installations

To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.

For more information, please view following instructions, videos or download manuals as PDFs.

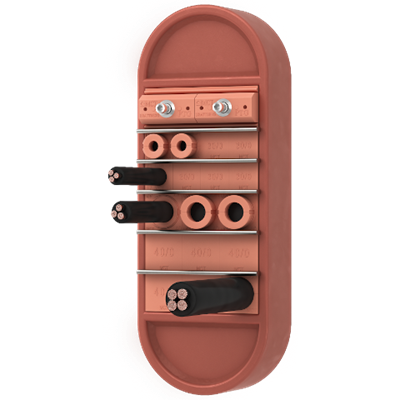

The RGSR is welded into an accurately pre-cut hole in the deck or bulkhead. As with all our transits, RGSR is produced in steel, stainless steel, or aluminium.

RGSR can be used in multiple frames.

For weight charts and installation details, singel or in multiple frames, contact MCT Brattberg.

Standard frames come in eight sizes: 1, 2, 3, 4, 5, 6, 7, and 8.
The internal width can be 60.5 ± 1 (Size 1,3,5,7) or 120.5 ± 1 (2,4,6,8).

Note that there can be limitations in type-approvals & certificates, making certain sizes inapplicable.

For size and weight please see tables in the MCT Online Catalogue:

MCT Catalogue

The system consists of a frame, rubber blocks and a compression unit. The frame is welded or bolted to a marine structure and packed with rubber blocks suited for each cable and pipe dimension. The compression unit is inserted to compress the rubber blocks against cables and pipes to establish a tight seal.
